Troubleshooting Guide: Why Is My Biscuit Flipper Misaligning or Dropping Products?
Authored by: The EverSmart Field Service & Support Team
Based on diagnosing and solving over 500 real-world issues on factory floors.
Your production line is running, but the biscuit flipper is causing chaos. Biscuits are misaligned, turned sideways, or dropping completely. Your line speed is down, and waste is piling up. You need to fix it, now.
A well-functioning biscuit flipper is a cornerstone of an effective
⚠️ SAFETY FIRST: Before performing any adjustments or maintenance, always follow your factory's proper Lockout/Tagout (LOTO) procedures. Ensure the machine is de-energized and cannot be started unexpectedly.
The First Step: Check Your Last Action
Most problems start after a change. Before you touch any settings, ask yourself:
Did this problem start right after a product changeover? If yes, the issue is likely related to an incorrect physical adjustment or the wrong recipe being loaded on the HMI. Review your procedure in our
Quick Changeover Guide .Did this problem start after a cleaning or maintenance cycle? If yes, the cause could be a misaligned sensor, incorrect belt tension, or a component that wasn't properly re-installed.

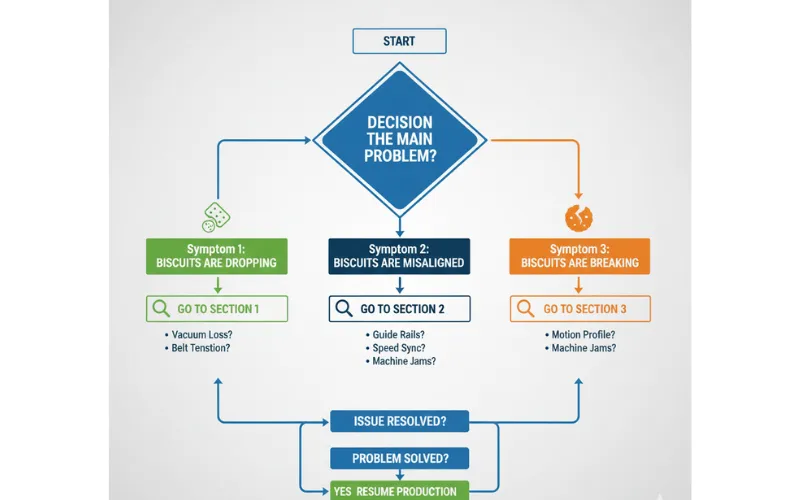

Diagnostic Checklist: Troubleshooting by Symptom
Find your specific problem below and work through the potential causes, starting with the most common.
Symptom 1: Biscuits Are Being Dropped

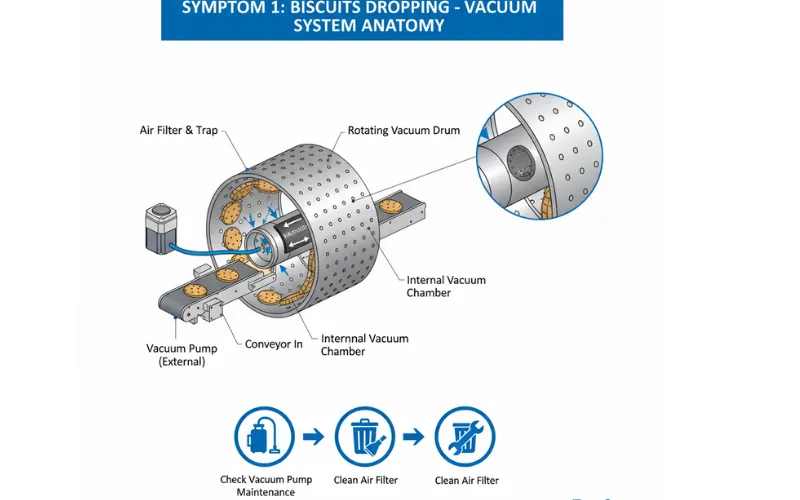

For a Vacuum Drum Flipper:
Clogged Vacuum Filter: This is the #1 cause of weak suction.
Solution: Power down the machine and clean or replace the main vacuum pump filter.
Dirty Drum or Nozzles: Product dust or oil film can block the vacuum holes.
Solution: Wipe down the drum surface and ensure all nozzles are clear.
Incorrect Vacuum Pressure: The pressure setting may be too low for the biscuit's weight.
Solution: Increase the vacuum pressure slightly via the HMI settings.
For a Turnover Belt Flipper:

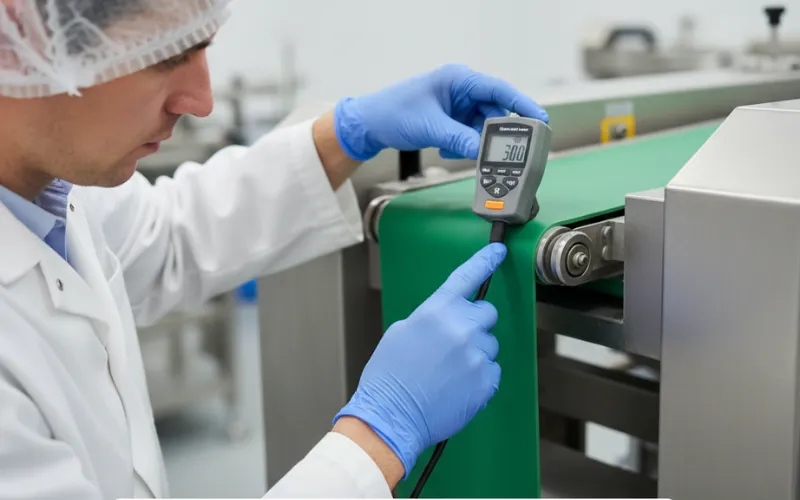

Incorrect Belt Tension: Belts that are too loose will not grip the biscuit securely.
Solution: Check the belt tensioners and adjust for a firm but not overly tight grip.
Worn or Greasy Belts: Over time, belts can wear out or become coated in a fine oil film, reducing their grip.
Solution: Clean the belts thoroughly. If they are worn or glazed, they must be replaced.
A consistent cleaning schedule is the best prevention. See our
Symptom 2: Biscuits Are Misaligned on Discharge

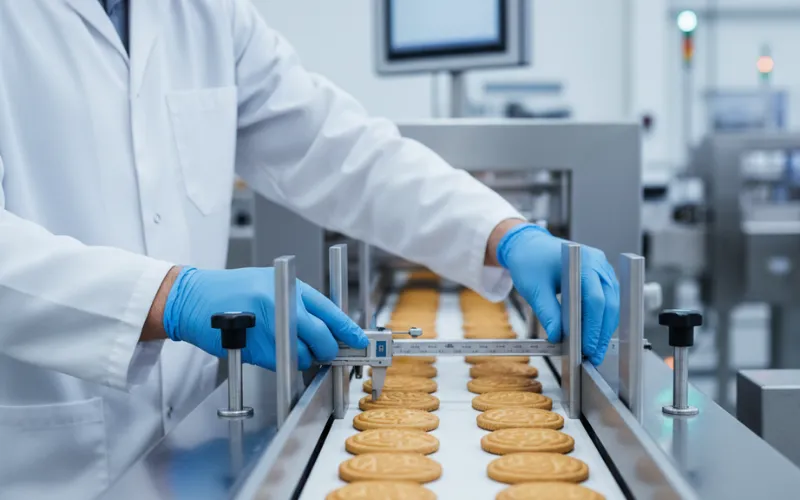

Incorrect Guide Rail Width: The most common cause after a changeover.
Solution: Check that the infeed and discharge guide rails are set to the correct width for the current product.
Dirty or Misaligned Product Sensors: The sensors that detect the biscuit's position may be dirty or have been bumped out of alignment.
Solution: Clean the sensor lenses. Check that the sensor is securely mounted and aimed correctly.
Incorrect Speed Synchronization: The flipper's discharge speed is not matched to the downstream conveyor speed, causing the biscuit to tumble or turn as it transfers.
Solution: Verify the speed synchronization settings in the HMI. This may be an issue with the initial setup, covered in our
Engineer's Guide to Integration .

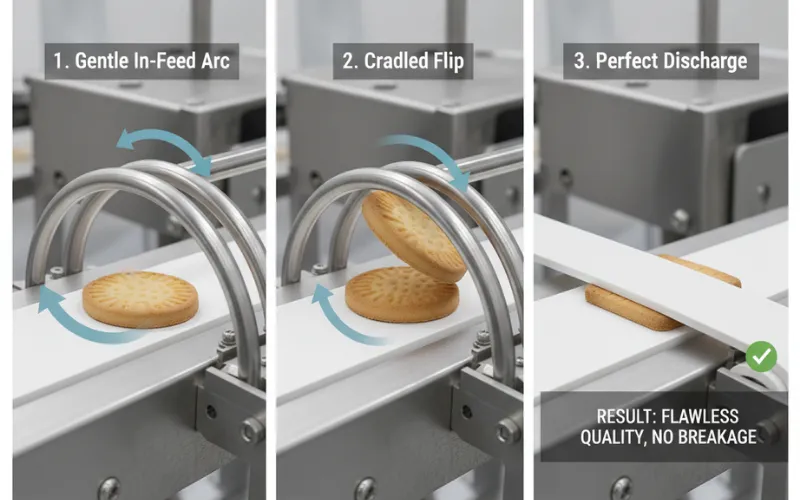

Symptom 3: Biscuits Are Breaking During the Flip
Aggressive Motion Profile: The machine's acceleration/deceleration speed is too high for a fragile product.
Solution: Select a "soft handling" or "gentle" recipe on the HMI, or manually reduce the acceleration parameters.
Excessive Vacuum Pressure: Too much suction can crack delicate biscuits.
Solution: Reduce the vacuum pressure setting.
Mechanical Impact: The biscuit is hitting a guide rail or transfer plate.
Solution: Check for physical obstructions and verify all mechanical alignments.
For a complete guide on this topic, please see
Conclusion: A Reliable Flipper is a Maintained Flipper
Most performance issues on a biscuit flipper are not major breakdowns. They are small, preventable problems related to cleaning, maintenance, and correct settings. A consistent routine is the key to reliability.
For official technical specifications and design features of your machine, please refer back to our main pillar page:
Still Having Trouble? Contact Our Technical Support.
If you have worked through this guide and are still facing issues, or if you see a specific fault code on the HMI, it's time to call an expert.
