Optimizing Space: U-Turn and 90-Degree Layouts for Sandwich Lines

Introduction: The "Square Peg, Round Hole" Problem

There is a fundamental geometric conflict in biscuit manufacturing. The Tunnel Oven is a linear beast, wanting to be 100 meters straight. The Factory Building, however, is usually a square box.

When upgrading from a simple biscuit line to a Industrial Biscuit Sandwich Machine, you are adding significant length (+50m for cooling, +6m for sandwicher, +15m for packaging). If you don't have a 200-meter long hall, you have a problem.

The Engineering Solution: You must bend the line.This guide explores the physics of Directional Changes, covering the difference between Power Turns and Dead Plates, and how to use Vertical Space to double your floor capacity.

🚀 Key Takeaways

• Radius Rules: The inner radius dictates speed differential. Tighter turns = unstable biscuits.

• Orientation Control: Turning often rotates the biscuit. You need Re-Alignment Modules.

• Verticality: If you can't go long, go up. Spiral Cooling Towers replace 50m of belt with a 5x5m footprint.

• Ergonomics: Never trap operators inside a "U-Shape" layout without a walkthrough gate.

• Hybrid Options: Need to run both plain and sandwich biscuits? Read our Hybrid Biscuit Production Line Guide.

The Physics of Turning

Why is turning a biscuit so hard? It comes down to Differential Speed.

The "Race Track" Effect

On a curved conveyor belt, the inner radius moves slowly, while the outer radius moves fast. If a row of 6 biscuits enters a turn:

• Biscuit 1 (Inside): Travels a short distance.

• Biscuit 6 (Outside): Travels a long distance. Unless the belt is engineered perfectly, Biscuit 6 will lag behind, destroying the straight "Row Alignment" required for the sandwich machine.

The Solution: Modular Radius BeltsWe use specialized modular belts where links collapse on the inner side and expand on the outer side, maintaining relative row position.

External Resource: Conveyor Belt Radius Calculations(Engineering Toolbox).

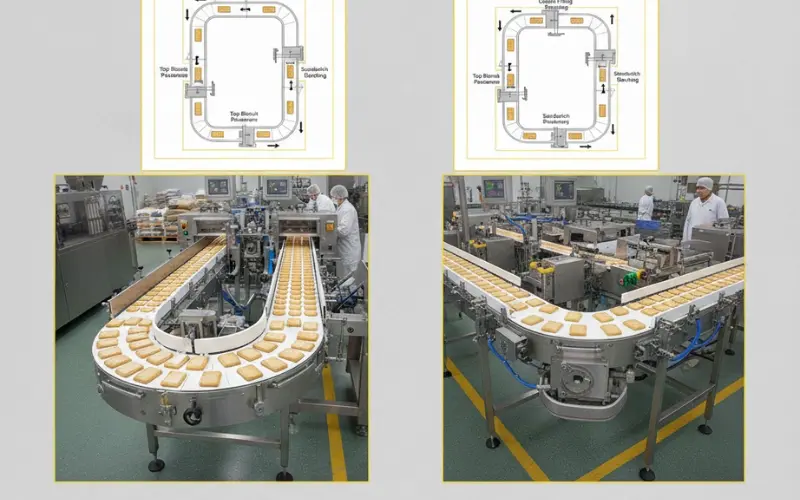

Layout A: The "L-Shape" (90-Degree)

This is common when fitting a line into a corner.Flow: Oven $\to$ Straight Cooling $\to$ 90° Turn $\to$ Sandwicher $\to$ Packaging.

The Critical Component: The Power TurnDo not use a passive "dead plate." You need a Powered Curve Conveyor (Knife-Edge).

• Challenge: After the turn, biscuits might be slightly skewed.

• Fix: You must install a Rectangular Biscuit Alignment module immediately after the turn.

Layout B: The "U-Turn" (180-Degree)

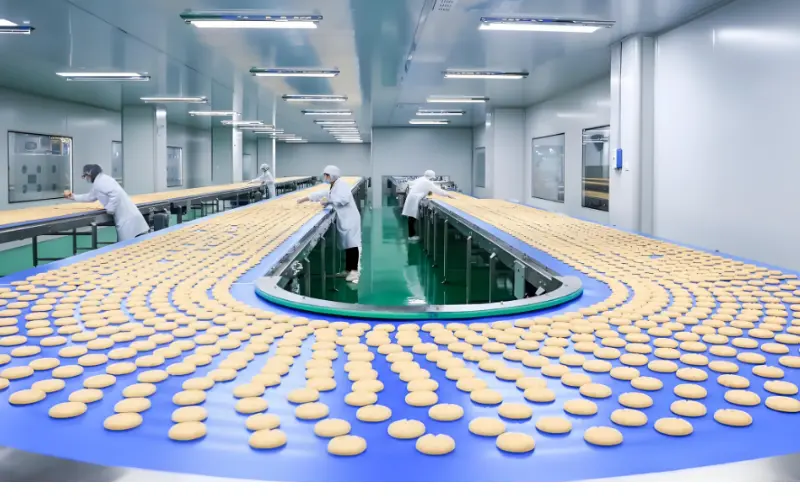

This effectively folds the line in half, so raw materials and finished goods are at the same end of the factory.

The "Walkthrough" TrapIf you build a continuous waist-height conveyor, you trap operators in the middle.

• Solution 1: The Lift-Gate Conveyor. A section that lifts up like a drawbridge.

• Solution 2: The "Z" Conveyor. Elevate a section of the cooling line to 2.5m high, creating a tunnel for staff to walk under.




Going Vertical: The Spiral Cooler

Sometimes, you simply don't have the length for any layout. You need 40 minutes of cooling time (60m of belt) but only have 20m of floor space.

The Solution: The Spiral Cooling Tower.

• Mechanism: The belt enters the bottom and spirals up around a central drum.

• Footprint: 5m x 5m.

• Capacity: Can hold 200+ meters of effective belt length.

• Pros: Saves massive space; uses natural convection.

• Cons: Harder to clean. Ensure you follow Hygienic Design principles.

Troubleshooting Layout Issues

FAQ: Factory Planning

Q1: What is the minimum radius for a turn?A: For loose biscuits, the minimum inner radius is typically 800mm. Any tighter, and the product spins.

Q2: Can I put the Sandwich Machine in the turn?A: No. Sandwiching requires a straight path. The turn must happen before (during cooling) or after (during packaging).

• Syncing: Learn about Biscuit Sandwicher & Flow Wrapper Synchronization.

Q3: Does a U-Turn affect cooling?A: Yes, positively. It allows you to create a localized "Cooling Tunnel" enclosure for the return leg, recycling cool air.

Conclusion: Geometry is Manageable

Don't let a square building force you into a suboptimal linear layout. With Powered Curves and Spiral Towers, you can fit a high-capacity sandwich line into almost any footprint.
