The Handshake: Synchronizing Sandwichers with Flow Wrapping Machines

Introduction: The Geometry of the Pack

In the supermarket aisle, packaging is marketing. But on the factory floor, packaging is geometry.

How you orient the biscuit—standing up (On-Edge) or lying flat (Flat Pile)—dictates the entire architecture of your automation line. It determines your speed limits, your buffering strategy, and your capital expenditure.

• On-Edge (Slug Pack): The standard for high-volume "Family Packs." Biscuits stand vertically like coins.

• Flat Pile (Stack Pack): The standard for "On-the-Go" vending packs. Biscuits are stacked 2, 3, or 4 high.

The Engineering Conflict:You cannot easily switch between these formats. An On-Edge loader uses "Penny Stackers" and continuous motion. A Flat Pile loader uses "Magazine Droppers" or Robotics. Choosing the wrong format early in the project can lock you into a rigid, inefficient line.

This guide explores the physics of both methods, helping you match the machine to the market.

🚀 Key Takeaways

• Volume Rule: On-Edge is for high counts (10+ biscuits). Flat Pile is for low counts (2-4 biscuits).

• Speed Limit: On-Edge loaders are faster (continuous flow). Flat Pile loaders are slower (intermittent indexing).

• The "Penny Stacker": The critical module that flips biscuits 90 degrees for slug packing.

• Automation Context: How does this fit into the bigger picture? Start with our Industrial Biscuit Sandwich Machine Guide.

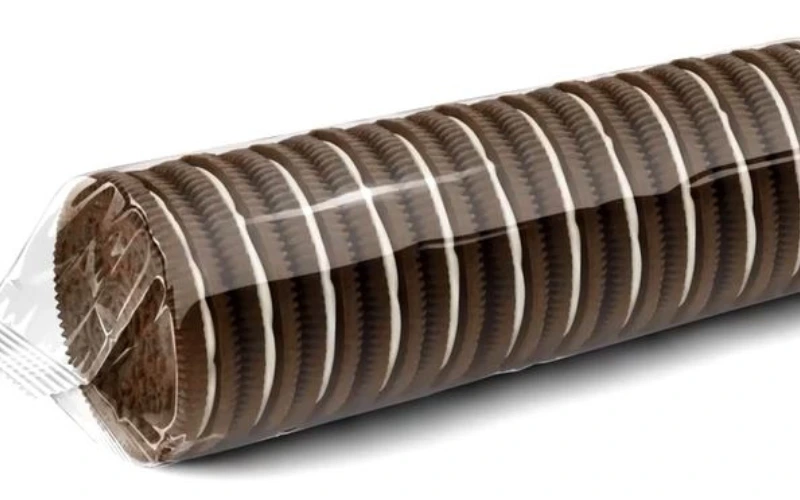

Format A: On-Edge Packaging (The Slug)

This is the heavy lifter of the biscuit world. It is efficient, dense, and protective.

The Mechanism: The Penny Stacker

Biscuits exit the sandwich machine lying flat. To pack them On-Edge, we must flip them 90 degrees.

1. The Lane Multiplier: Spreads biscuits into channels. (Read our Lane Multiplier Guide).

2. The Penny Stacker: A star wheel or cascading belt tips the biscuits upright.

3. The Accumulation Rail: Vibratory rails push the standing biscuits into a tight log.

Automation Logic

Once in a log, the system must count them.

• Metering: A servo finger separates a specific length (e.g., 200mm = 25 biscuits).

• Loading: A cross-pusher (or "bomb-bay" door) drops the slug into the Flow Wrapper chain.

• Synchronization: This transfer must be perfectly timed. See Biscuit Sandwicher & Flow Wrapper Synchronization.

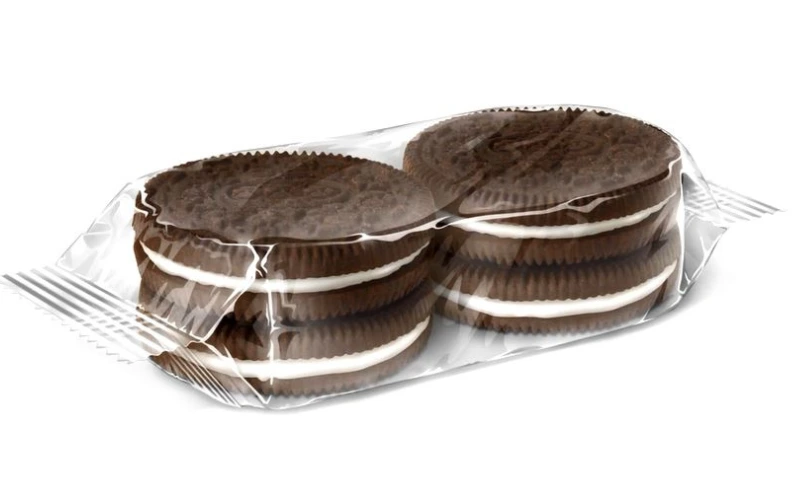

Format B: Flat Pile Packaging (The Stack)

This format is premium. It is used for "Pocket Packs" (2-pack) or tray loading.

The Mechanism: Magazine Feeding

Unlike the continuous slug flow, Flat Piling is usually intermittent.

1. Magazines: Biscuits are fed into vertical chutes.

2. The Drop: Fingers at the bottom release 2 biscuits at once into the wrapper chain.

3. The Limitation: Gravity takes time. You are limited to roughly 150 packs per minute per lane.

   4.Manual vs. Auto: You can load these magazines by hand or automate them. Compare the ROI in Magazine Feeder vs. Inline Automation.

The Robotic Alternative: Pick-and-Place

For ultimate flexibility (e.g., Variety Packs), rigid mechanical loaders fail. Enter Robotics.

Delta Robots

A Delta Robot uses a camera to see incoming biscuits and places them into a tray or wrapper chain.

• Pros: Can create Flat Piles OR On-Edge slugs. Can handle mixed flavors.

• Cons: High cost. Speed per robot is limited (~80 picks/min).

• Deep Dive: For loading plastic trays, read our Biscuit Tray Loading Automation Guide.

External Resource: Robotics in Food Packaging(PMMI Report).

Troubleshooting & Efficiency

The "Shingle" Problem

In On-Edge packing, if one biscuit falls flat (shingles), the whole slug creates a domino effect.

• The Fix: Increase back-pressure on the vibratory rail. Ensure the Buffer System is full.

• Learn More: Biscuit Production Buffer Systems Guide.

•


Changeovers

Switching from a "10-Pack" to a "20-Pack"?

• On-Edge: Easy. Adjust the metering finger length on the HMI.

• Flat Pile: Hard. You may need to change the physical chain lugs.

• Strategy: Minimize downtime with Quick Changeover Protocols.

Comparison Matrix

Conclusion: Matching Machine to Market

Don't let the machine dictate the product.

• Choose On-Edge for efficiency and volume.

• Choose Flat Pile for convenience and premium presentation.

The EverSmart Advantage: We model your packaging hall in 3D to ensure the Handshake between the sandwicher and the wrapper is flawless.

Need a Layout?We can design Hybrid Lines that support both formats.
