Automatic Biscuit Sandwich Machine for Fast Production

What is an Industrial Biscuit Sandwich Machine?

An industrial biscuit sandwich machine is a specialized automation system designed to streamline the production of filled biscuits. These machines mechanically align base biscuits, deposit a precise amount of filling—such as cream, chocolate, or jam—and accurately place a top biscuit to form a sandwich. At Eversmart, our equipment transforms standalone baking processes into integrated, high-value production lines. By automating the feeding, sandwiching, and output stages, manufacturers can achieve consistent product weight, uniform filling distribution, and significantly higher throughput compared to manual methods.

Overview of Modern Sandwiching Technology

Modern sandwiching machines utilize advanced robotics and control systems to maximize efficiency and hygiene. Our systems are built on a foundation of SUS304 stainless steel, ensuring durability and compliance with strict food safety standards. The core technology relies on servo motor control, which drives the precise movement of the biscuit pusher and the cream dispenser stencil. This synchronization ensures that the filling is deposited exactly in the center of the biscuit, regardless of the production speed.

Key technological features include:

• Intelligent PLC Control: A user-friendly touch-screen interface allows operators to easily adjust speed, filling volume, and stacking parameters.

• Flexible Shape Handling: The system accommodates round, square, and rectangular biscuits with quick changeover parts.

• Automated Feeding: Vibratory chutes and magazine feeders ensure a continuous supply of biscuits to the biscuit creamer unit.

High-Speed Production for Cream and Jam Sandwiches

To meet the demands of large-scale food production, our machines are engineered for high-speed performance without compromising stability. A single lane can achieve speeds ranging from 300 to 600 sandwiches per minute, depending on the model and biscuit size. For higher capacity needs, we offer multi-lane configurations (up to 6 lanes) that multiply output exponentially.

The depositing heads are versatile, capable of handling various filling viscosities:

• Cream: Standard single-flavor or double color deposits.

• Jam: Specialized nozzles prevent dripping and ensure clean application of sticky fruit fillings.

• Chocolate: Temperature-controlled systems maintain the ideal consistency for industrial chocolate coating or filling.

This high-speed capability ensures that bakeries can scale their operations efficiently, moving from raw baked goods to finished, packaged filled biscuits rapidly.

Key Features and Performance Benefits

Precision Depositing and Accurate Filling Control

Our biscuit sandwich machine utilizes advanced servo drive technology to ensure every deposit is exact. We know that in food production, material waste cuts directly into profit margins. That is why our system controls the cream dispenser stencil and pump with high precision, ensuring the filling lands strictly on the biscuit surface and not on the conveyor belt.

Whether you are running a standard biscuit creamer operation or a complex double color application, the cream hopper and feeding system maintain consistent pressure and flow. This accuracy applies across various filling types, including high-viscosity jams, chocolates, and aerated creams.

• Servo-Driven Stencils: Synchronized movement for zero-waste depositing.

• Versatile Filling: Handles cream, jam, and chocolate with equal precision.

• Adjustable Thickness: Easy modification of filling volume via the PLC interface.

High-Volume Output with Reduced Labor Costs

In the US market, labor efficiency is just as critical as production speed. Our machines are designed to transform your bakery equipment setup by automating the most labor-intensive parts of the process. A single multi-lane sandwiching machine can handle the output of dozens of manual workers, achieving speeds up to 600 sandwiches per minute per lane.

By implementing comprehensive bakery automation from oven to packaging, manufacturers can streamline the flow from the cooling conveyor directly to the sandwiching unit. This seamless integration eliminates bottlenecks and significantly lowers the cost per unit.

Food Safety and Hygienic Design Standards

We build our equipment to meet rigorous hygiene standards, utilizing food-grade SUS304 stainless steel for all contact parts. The design prioritizes accessibility, allowing operators to easily clean the cream hopper, stencils, and transport belts. This reduces downtime during changeovers and ensures compliance with strict food safety regulations.

Performance  Table:

Types of Biscuit Sandwiching Equipment

Single and Multi-Row Production Lines

We design our systems to scale directly with your production goals. For facilities prioritizing flexibility and moderate output, our single-lane configurations offer precision and reliability without a massive footprint. However, for industrial-scale operations demanding maximum throughput, we deploy high-speed multi-row systems. These **automatic biscuit sandwiching machines** can be configured with 2, 4, or even 6 lanes, capable of processing thousands of sandwiches per minute. This modular approach ensures that whether you are running a pilot line or a 24/7 facility, the equipment matches your capacity needs perfectly.

Specialized Fillers for Cream, Jam, and Nougat

The versatility of the filling system is what sets a premium **biscuit sandwich machine** apart. We engineer our filling heads to handle a wide range of textures and viscosities. Beyond standard cream, our units effectively process chocolate, fruit jams, and even nougat.
*   **Cream Dispenser Stencil:** Ensures sharp, clean edges on every deposit.
*   **Double Color/Layer:** Capable of depositing two different flavors or colors in a single pass.
*   **Viscosity Control:** Specialized hoppers maintain the ideal temperature and flow for sticky or aerated fillings.

This flexibility allows you to produce diverse filled biscuits on a single machine with minimal downtime for cleaning or changeovers.

Customizable Systems for Diverse Biscuit Shapes

Market trends demand variety, and our equipment is built to handle more than just standard round cookies. We customize the feeding magazines and pusher chains to accommodate square, rectangular, and even oval shapes. The **cookie capper system** utilizes servo-driven controls to align the top and bottom biscuits perfectly, regardless of their geometry. This is crucial for maintaining the aesthetic quality of the final product. Changing between different biscuit sizes is straightforward, utilizing quick-release parts that allow operators to switch production runs efficiently while maintaining high-speed precision.

Core Components and Operating Principle

To understand how our biscuit sandwich machine delivers consistent results at high speeds, you need to look at the synchronized technology under the hood. We design these systems to handle the delicate balance between high-velocity throughput and gentle product handling, ensuring that every sandwich cookie comes out perfectly aligned and filled.

Automated Biscuit Feeding and Transport Systems

The efficiency of the entire line depends on how well the biscuit shells are fed into the system. We utilize precision magazine feeders and vibratory chutes that align the biscuits before they hit the main conveyor.

• Vibratory Feeders: These gently shake the biscuits into the correct orientation for the pushers.

• Chain Drive System: A double-chain drive moves the bottom biscuit shells into the depositing zone with exact timing.

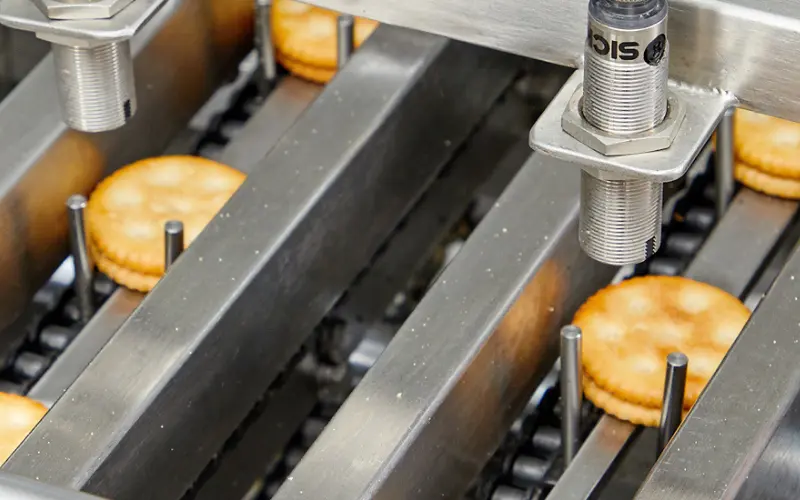

• No-Biscuit, No-Cream Logic: Our sensors detect if a shell is missing. If the bottom biscuit isn’t there, the machine automatically skips the filling step to keep the belt clean and reduce waste.

Reliable feeding is critical, especially when integrating with an upstream cookie maker machine that is pumping out thousands of shells per hour.

Advanced Cream Extrusion and Depositing Heads

The heart of the operation is the filling system. Whether you are running a standard vanilla cream, a sticky fruit jam, or a dense chocolate ganache, the depositing mechanism must be precise. We use a hygienic stainless steel cream hopper that feeds directly into the pump system.

• Cream Dispenser Stencil: For standard round or square biscuits, a stencil system deposits a clean, uniform shape directly onto the bottom shell.

• Servo-Driven Pumps: These control the exact weight of the filling, ensuring that your filled biscuits meet strict weight specifications every time.

• Versatility: The head can be swapped or adjusted to handle different viscosities, making it easy to switch between a biscuit creamer setup and a jam depositor.

Intelligent PLC Control and Touchscreen Interface

Modern production requires instant adaptability. We power our sandwiching machines with advanced PLC (Programmable Logic Controller) systems and user-friendly touchscreens. This interface allows operators to adjust the speed, filling volume, and synchronization without stopping the machine.

• Servo Motor Synchronization: The PLC coordinates the servo motors driving the cream pump and the biscuit pusher, ensuring the filling lands dead center every time.

• Recipe Storage: You can save settings for different products, allowing for quick changeovers between a double-layer sandwich or a standard cream cookie.

• Diagnostics: The system provides real-time feedback on production counts and maintenance alerts, keeping your line running at peak efficiency.

Wide Range of Application Scenarios

Large-Scale Cookie and Biscuit Manufacturing

When you are running a major facility, downtime is not an option. Our multi-lane systems are built for heavy-duty food production, handling everything from standard rotary moulder bases to delicate wire-cut varieties. We design these lines to run continuously, ensuring your filled biscuits hit the conveyor at speeds that keep up with aggressive market demand. If you are looking to increase production capacity without sacrificing quality, our high-speed lanes deliver consistent results shift after shift.

Specialized Snack and Dessert Production

Flexibility is key for modern bakery equipment. Our machines aren’t limited to basic vanilla cream; we support complex product development, including double color and double layer fillings. The precise cream dispenser stencil and adjustable cream hopper allow you to switch between aerated creams, heavy jams, or even industrial chocolate coating applications. This versatility lets you expand your catalog from simple sandwiches to premium treats without buying a whole new rig.

Integration with Automatic Packaging Lines

A standalone biscuit creamer is effective, but a fully integrated line is where you see real ROI. We connect the sandwiching machine directly to the packaging phase. Our cookie capper system aligns perfectly with flow wrappers, creating a seamless transition from the sandwiching belt to the final pillow pack. This automation reduces manual handling and significantly lowers labor costs, ensuring a hygienic process from the moment the biscuit shells enter the feeder until they are sealed.

Technical Specifications and Capacity

When evaluating a biscuit sandwich machine for your facility, understanding the raw numbers and engineering standards is critical. We design our equipment to balance high-velocity output with the precision required for delicate filled biscuits. Below, we break down the capacity capabilities and the physical requirements needed to integrate these systems into your food production floor.

High-Output Performance: Up to 4,800 Sandwiches Per Minute

Speed is the primary driver for industrial bakery equipment. Our sandwiching systems utilize a modular multi-lane design to achieve massive throughput without sacrificing accuracy. While a single lane typically operates between 300 to 600 sandwiches per minute, scaling up to multiple lanes allows us to meet aggressive production targets.

• Lane Configuration: Available in 1, 2, 4, or 6-lane setups to match your volume needs.

• Servo Control: Independent servo motors drive the cream hopper and biscuit creamer mechanisms, ensuring precise filling even at maximum speeds.

• Versatility: The system handles standard cream, jam, or double color fillings seamlessly.

Whether you are running a standard round biscuit or a complex cookie capper system, the synchronization between the cream dispenser stencil and the conveyor ensures that every sandwich is uniform. This high-speed capability is essential for factories looking to maximize daily tonnage.

Equipment Footprint and Power Requirements

Space efficiency and robust construction are non-negotiable in a modern factory. Our biscuit sandwich machine is built with a focus on hygiene and durability, utilizing food-grade materials that withstand rigorous cleaning schedules.

Key Technical Parameters:

The machine’s layout is designed to integrate smoothly with upstream equipment like a rotary moulder or wire-cut machine, as well as downstream industrial chocolate coating or packaging lines. The modular frame allows for quick changeovers, minimizing downtime when switching between different biscuit sizes or filling recipes.

How to Choose the Right Sandwiching Machine

Evaluating Filling Types and Recipe Versatility

When selecting a biscuit sandwich machine, the physical properties of your filling are the primary deciding factor. A standard cream hopper works perfectly for aerated vanilla or chocolate creams, but if your recipe calls for sticky fruit jams or heavy caramel, you need a system with specialized pumps and cutoff mechanisms. We design our biscuit creamer units to handle a wide range of viscosities, ensuring that filled biscuits remain clean and consistent without dripping or smearing.

Versatility also extends to the visual appeal of the product. Modern consumer demands often require double color or double layer fillings to stand out on the shelf. You should look for equipment that allows for quick changeovers between different deposit shapes—whether round, square, or rectangular.

Scalability and Integration with Existing Production Lines

Investing in bakery equipment requires looking at both current capacity and future growth. A modular approach is best; you might start with a single or double-lane setup, but the system should be capable of expanding to high-speed multi-lane configurations as your food production volume increases. Our systems are designed to interface directly with upstream cooling conveyors and downstream packaging units, creating a seamless flow from the oven to the wrapper.

Integration is critical for efficiency. A standalone unit requires manual feeding, which increases labor costs. In contrast, a fully integrated line automatically aligns and feeds biscuits into the sandwiching machine, significantly boosting throughput. For more details on configuring these automated systems, you can refer to our comprehensive industrial biscuit sandwich machine guide. We ensure that the synchronization between the sandwicher and the packaging machine is precise, preventing bottlenecks and minimizing waste.

Frequently Asked Questions (FAQ)

How does a biscuit sandwich machine work?

The process begins with the automatic feeding system. Biscuits are transferred from the cooling conveyor into vibrating chutes that align them into rows. The bottom biscuit passes under a **cream hopper**, where a **cream dispenser stencil** deposits a precise amount of filling—whether it’s cream, jam, or chocolate—onto the surface. Simultaneously, the top biscuit is positioned using a **cookie capper system**, often utilizing suction or mechanical pushers to place it accurately over the filling. The assembled sandwich then moves through a light compression belt to ensure the filling spreads evenly before heading to the cooling tunnel or packaging station.

Can the machine handle different biscuit sizes and shapes?

Yes, our systems are built for flexibility. Whether your production line uses a **rotary moulder** for hard dough or a **wire-cut** machine for soft dough, the **sandwiching machine** can be adapted to handle round, square, and rectangular shapes. We utilize interchangeable parts, such as pusher lugs and stencils, allowing for quick changeovers between different SKUs. This versatility is crucial for facilities producing various **filled biscuits**, ensuring you can switch between standard cream sandwiches and more complex formats without needing a completely separate line.

How is product quality and consistency maintained?

Consistency is achieved through advanced servo-driven technology and robust construction. We use independent motors to control the feeding, cream depositing, and capping stations, ensuring that the biscuit creamerapplies the exact weight of filling every time. This precision is vital for minimizing waste and meeting strict food production standards. Additionally, the equipment allows for the handling of complex recipes, such as **double color** or **double layer** fillings. To keep the line running at peak performance and ensure long-term reliability, following a strict food packaging equipment maintenance schedule is essential. The entire system is controlled via a PLC touchscreen, giving operators real-time data to adjust parameters instantly and maintain high-quality output for your bakery equipment.
